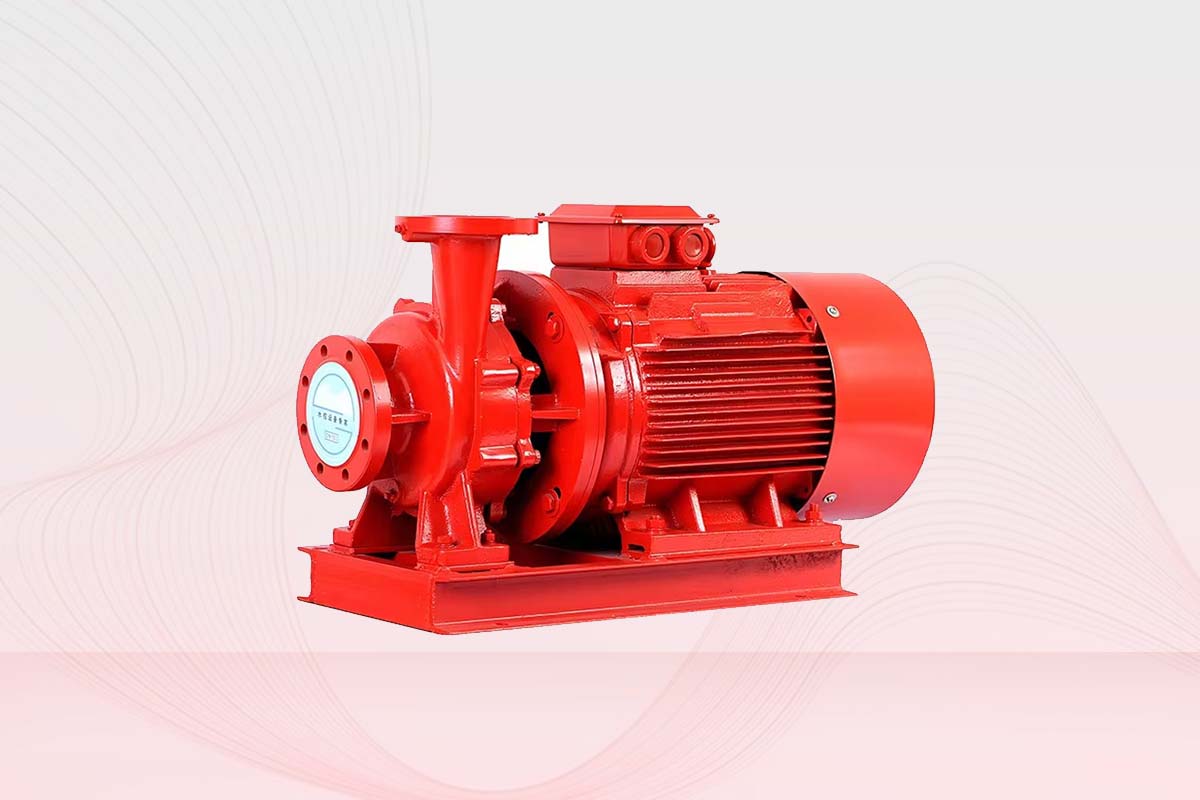

End Suction Fire Pumps are among the most commonly used in fire protection systems. These pumps have a single inlet that sucks water from one end and discharges it from the other. They are usually compact, making them suitable for installations with limited space. Technically speaking, they generally comply with NFPA 20 standards and can be powered by either electric motors or diesel engines. Capable of handling flows up to 1,500 gallons per minute (GPM), these pumps are perfect for small to medium-sized fire protection systems.

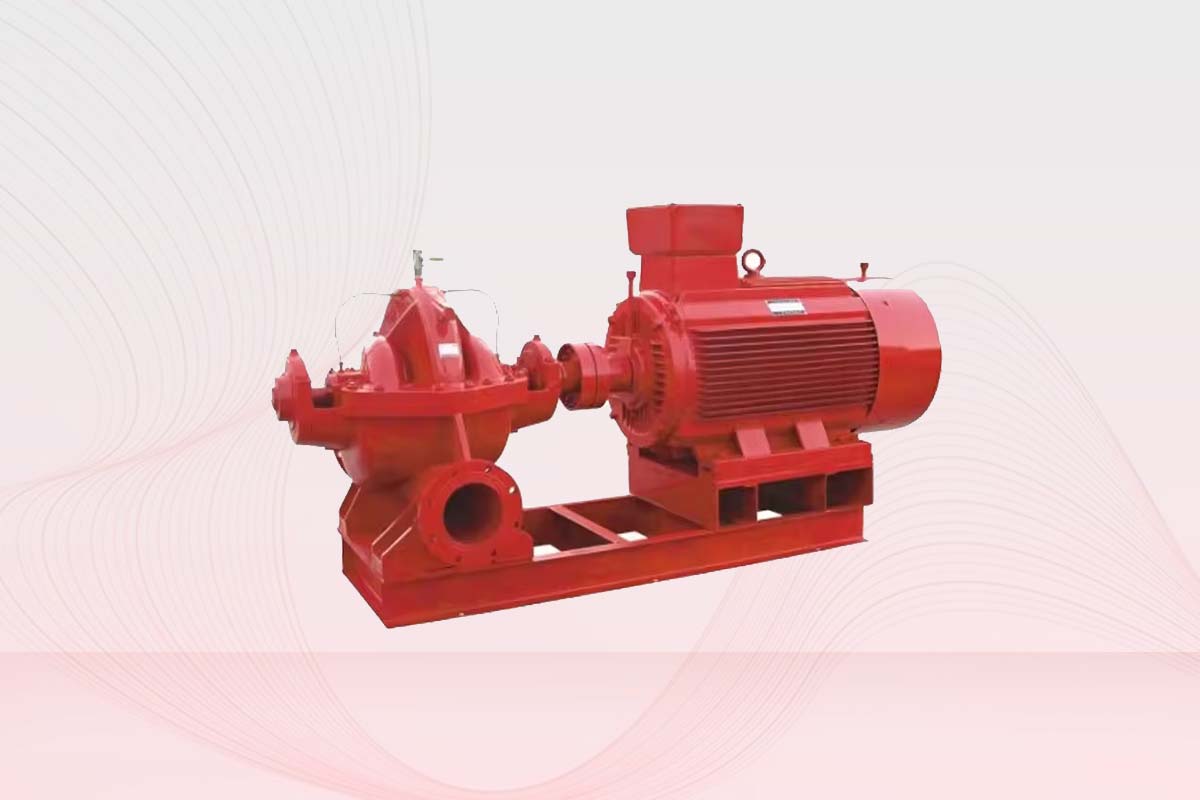

Horizontal Split Case Fire Pumps are designed for higher flow applications and are commonly used in large industrial and commercial properties. As the name suggests, these pumps have a horizontally split casing, which allows easy maintenance and inspection. They boast high efficiencies, often exceeding 80%, making them a cost-effective choice over their operational lifetime. These pumps can handle capacities up to 5,000 GPM and pressures up to 300 PSI. They typically feature a double suction impeller, ensuring balanced axial thrust and smooth operation.

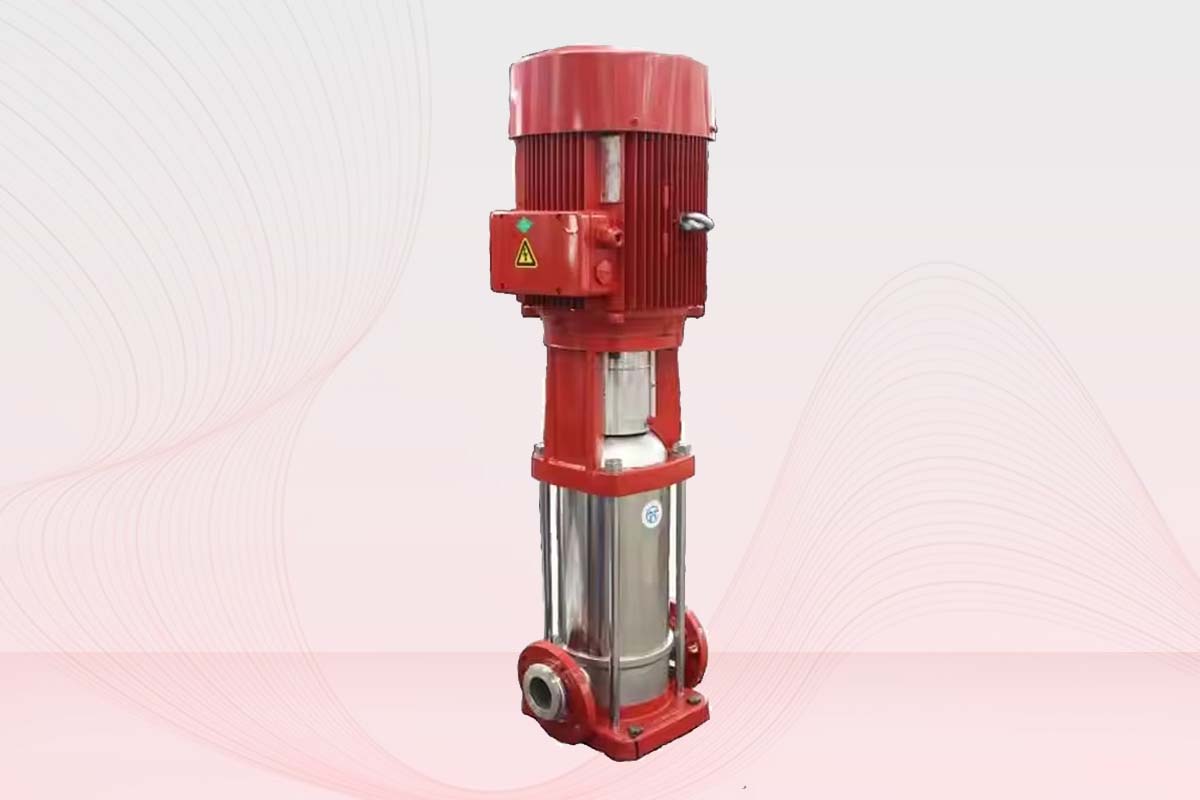

Vertical Inline Fire Pumps are compact units designed to be installed directly in the pipeline, making them ideal for systems with limited floor space. These pumps are mounted vertically, with a motor positioned directly above the pump. They are known for their easy alignment and reduced footprint. Designed per NFPA 20 standards, vertical inline fire pumps can deliver flows up to 1,500 GPM with pressures up to 175 PSI. Due to their streamlined design, they offer excellent reliability and are straightforward to maintain.

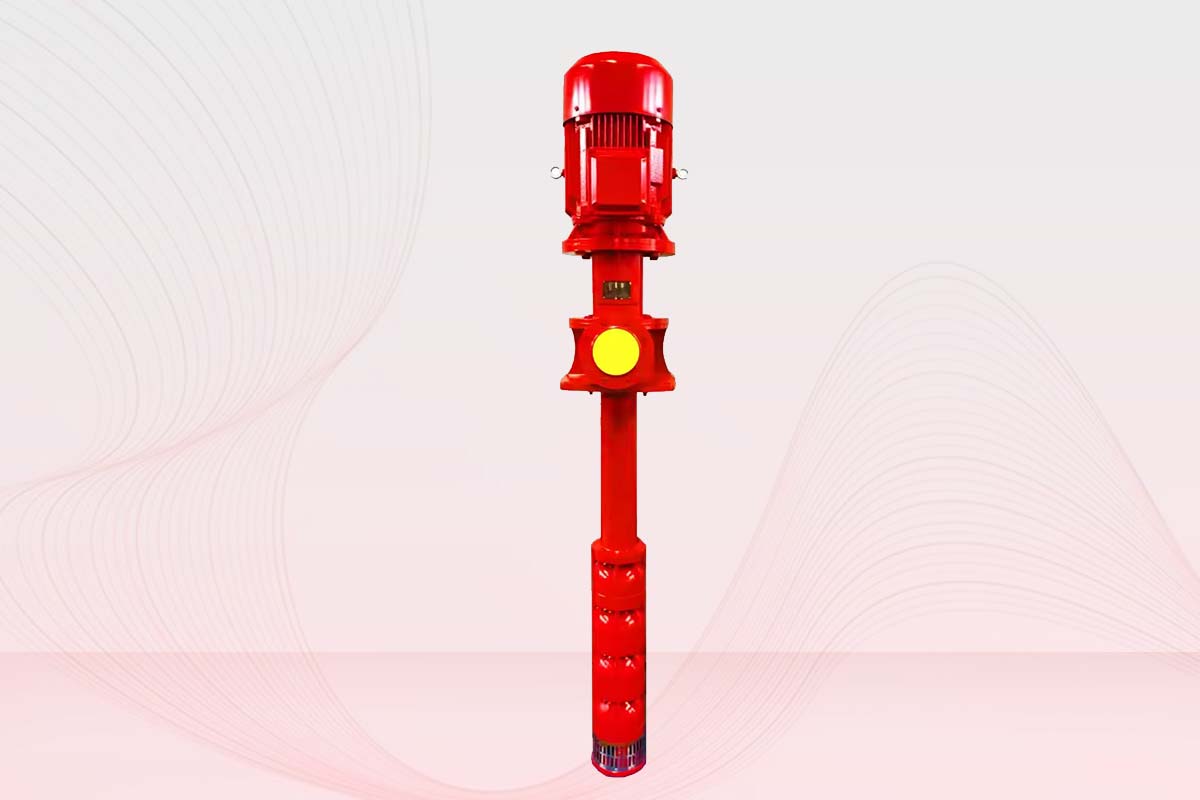

Vertical Turbine Fire Pumps are highly efficient and adaptable to a variety of installation settings, especially where water sources are located underground, like in wells or reservoirs. These pumps have vertically arranged stages, allowing them to achieve high pressures while maintaining manageable flow rates. They are designed to meet NFPA 20 standards and can handle capacities from 500 to 5,000 GPM. Vertical turbine fire pumps are capable of lifting water from significant depths, making them ideal for use in areas with low-lying water tables or other challenging conditions.

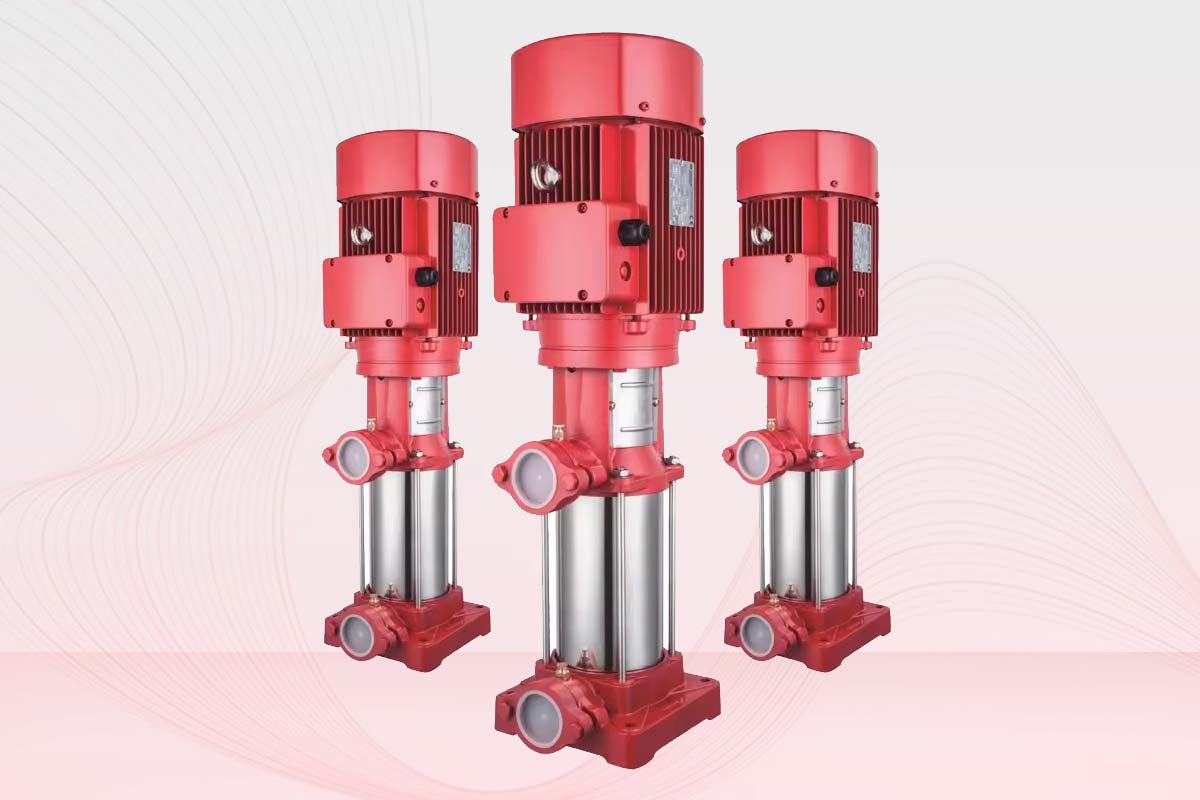

Multistage Fire Pumps are engineered to deliver high-pressure water flows, making them essential for high-rise buildings and other applications requiring substantial head. These pumps consist of multiple impellers (stages) mounted on a single shaft, allowing each stage to build pressure incrementally. Capable of achieving pressures up to 500 PSI and flow rates up to 5,000 GPM, they provide a reliable solution for the most demanding firefighting needs. Often constructed from durable materials such as cast iron and bronze, they ensure long-term performance even under challenging conditions.

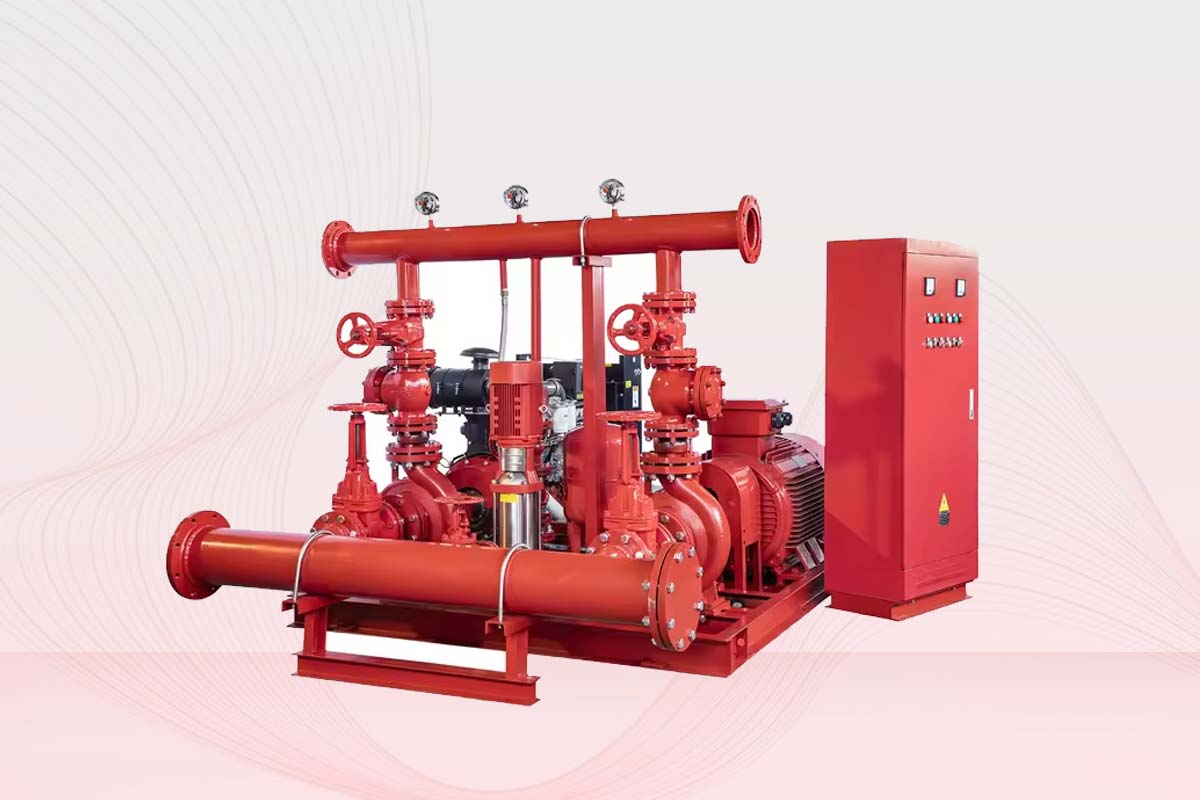

In commercial buildings, fire protection is paramount to safeguard lives, property, and business operations. Fire pumps are essential components of the fire suppression systems in these environments.

• Office Buildings: Fire pumps ensure that sprinklers, hose reels, and hydrants have adequate water pressure and flow to combat fires at all levels of the building. End suction and vertical inline fire pumps are commonly used due to their compact design and ability to fit within the limited mechanical room space.

• Shopping Malls: The large areas and high occupancy levels necessitate robust fire protection systems. Horizontal split case fire pumps are often used due to their high capacity and efficiency, ensuring a quick and effective response in case of a fire.

• Hotels and Hospitals: These facilities require reliable and consistent water supply for firefighting. Multistage fire pumps are ideal for such applications, particularly in high-rise buildings, as they can generate significant pressure to deliver water to upper floors.

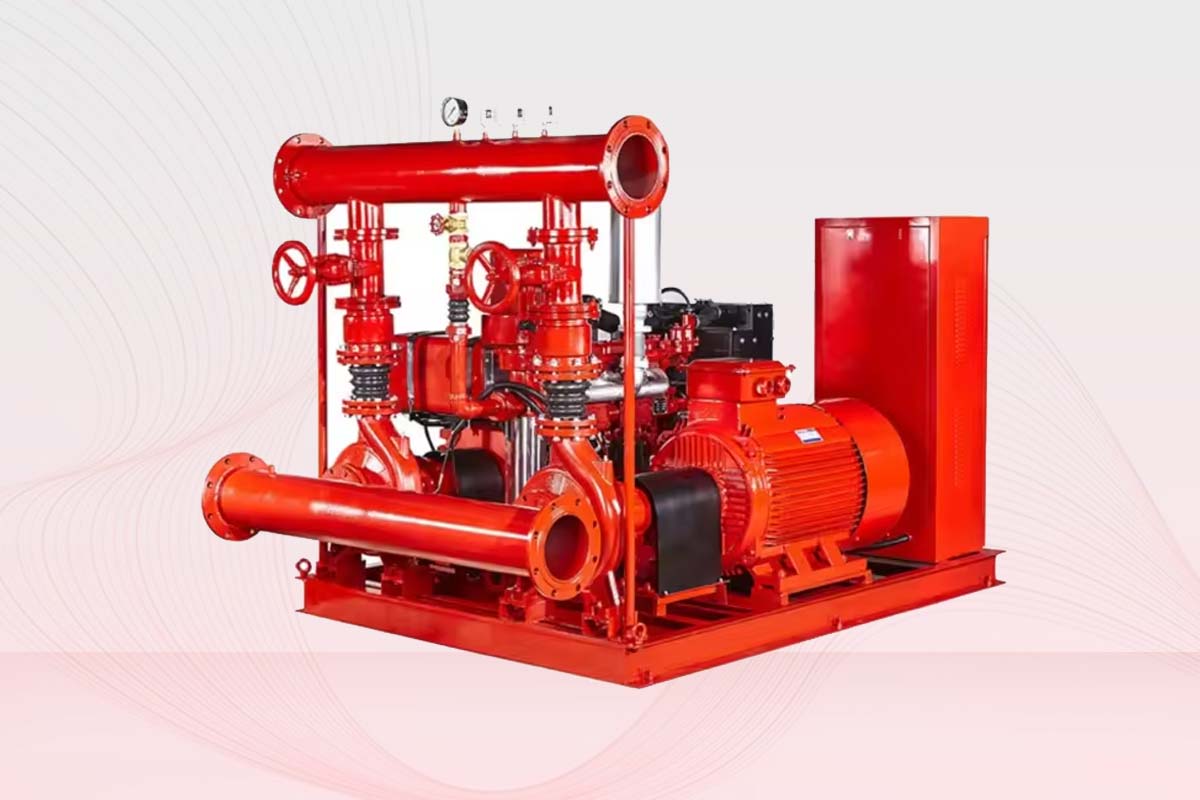

Industrial facilities, with their varying layouts and complex infrastructure, demand highly reliable fire pumps to mitigate fire risks.

• Manufacturing Plants: Fire pumps are crucial in maintaining an effective fire protection system for manufacturing areas and warehouses, where the risk of fire can be heightened due to machinery and stored materials. Horizontal split case fire pumps are often preferred for their durability and high flow rates.

• Chemical Plants: The presence of hazardous materials elevates the importance of an effective fire suppression system. Vertical turbine fire pumps are often selected for their high-pressure capabilities, ensuring comprehensive protection throughout the facility.

In residential complexes, ensuring the safety of residents is a top priority. Fire pumps play an essential role in providing water for firefighting equipment, especially in high-rise buildings where manual firefighting efforts would be insufficient.

• Apartment Buildings: Multistage fire pumps are ideal for these applications due to their ability to provide high-pressure water supply to the upper floors. Vertical inline fire pumps are also frequently used due to their compact design, fitting seamlessly into residential building systems.

• Gated Communities: Horizontal split case and end suction fire pumps are typically used to provide comprehensive coverage for larger residential areas, ensuring all homes and community facilities have access to firefighting water.

Oil and gas refineries are high-risk environments where robust fire protection systems are vital. The presence of flammable materials and complex systems necessitates specialized fire pumps capable of delivering consistent performance under demanding conditions.

• Refineries: Fire pumps in refineries need to meet stringent safety standards and provide high pressure and flow rates to cover extensive areas. Multistage and horizontal split case fire pumps are often employed due to their ability to handle large volumes of water and deliver it at high pressures.

• Storage Tanks: Ensuring the protection of large storage tanks containing flammable liquids is critical. Vertical turbine fire pumps are an excellent choice for these applications, particularly for extracting water from underground sources and delivering it under high pressure for firefighting.

Power plants are another sector where fire protection is critical. The presence of high-voltage equipment and fuel sources means any fire could have catastrophic consequences.

• Thermal Power Plants: End suction and horizontal split case fire pumps are commonly used in these facilities, ensuring an adequate water supply for cooling and firefighting.

• Hydroelectric Power Plants: Fire protection systems in hydroelectric plants often integrate vertical inline fire pumps to ensure space-saving and efficient fire control measures, particularly for protecting critical electrical infrastructure.
